Mute Performer
Description

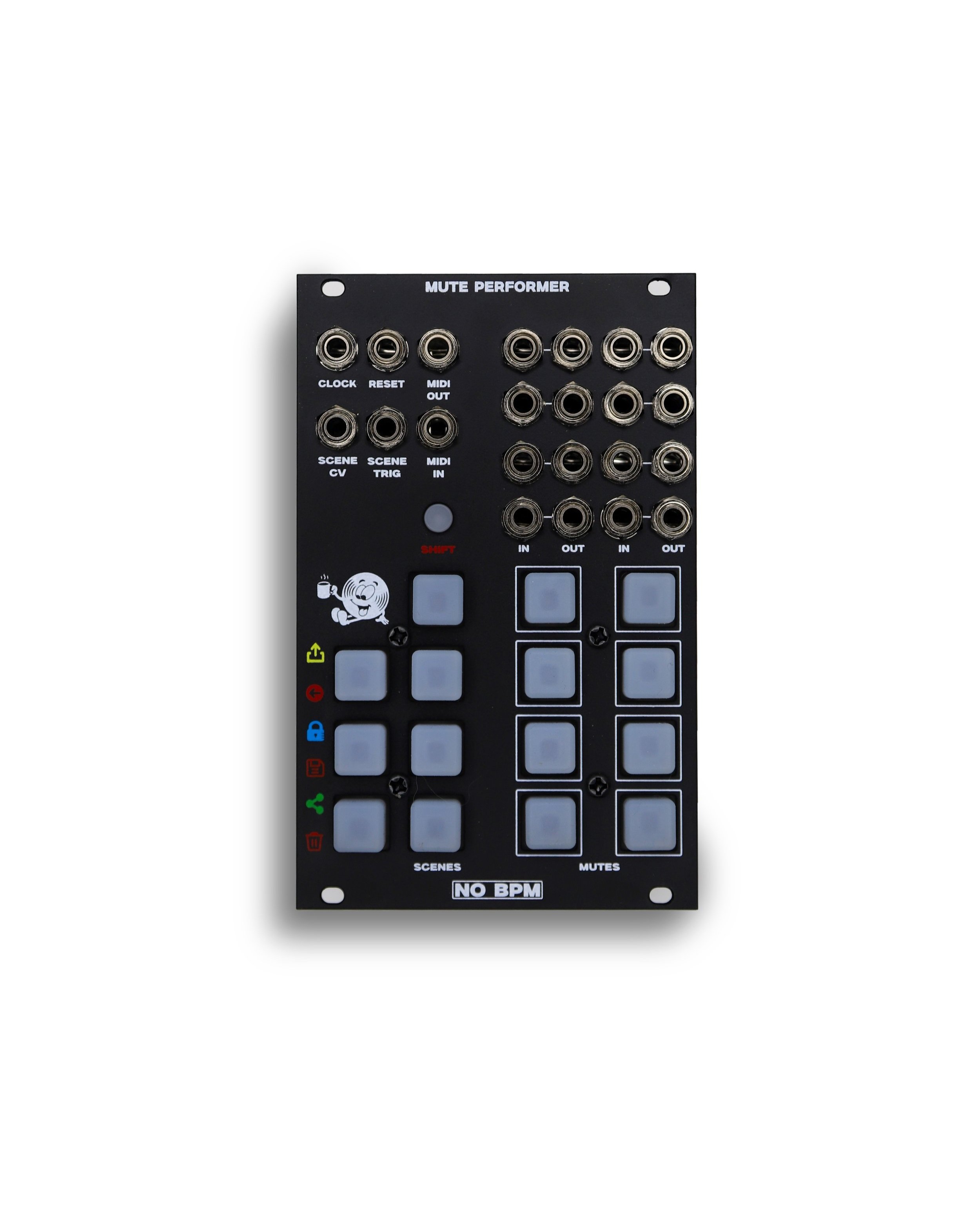

The Mute Performer takes the humble mute function into new and exciting territory.
8 channels of Mutes can be cued, locked, inverted, switched, mixed, stereo-paired, expanded, and arranged into scenes. Scenes can be saved, loaded, banked, clocked, triggered and modulated.
The Mute Performer also supports MIDI, which can be transmitted using a provided 5-pin MIDI Type A to 3.5mm cable.
This allows you to connect external MIDI devices to the Mute Performer, enabling performative control of mutes both inside and out your case.

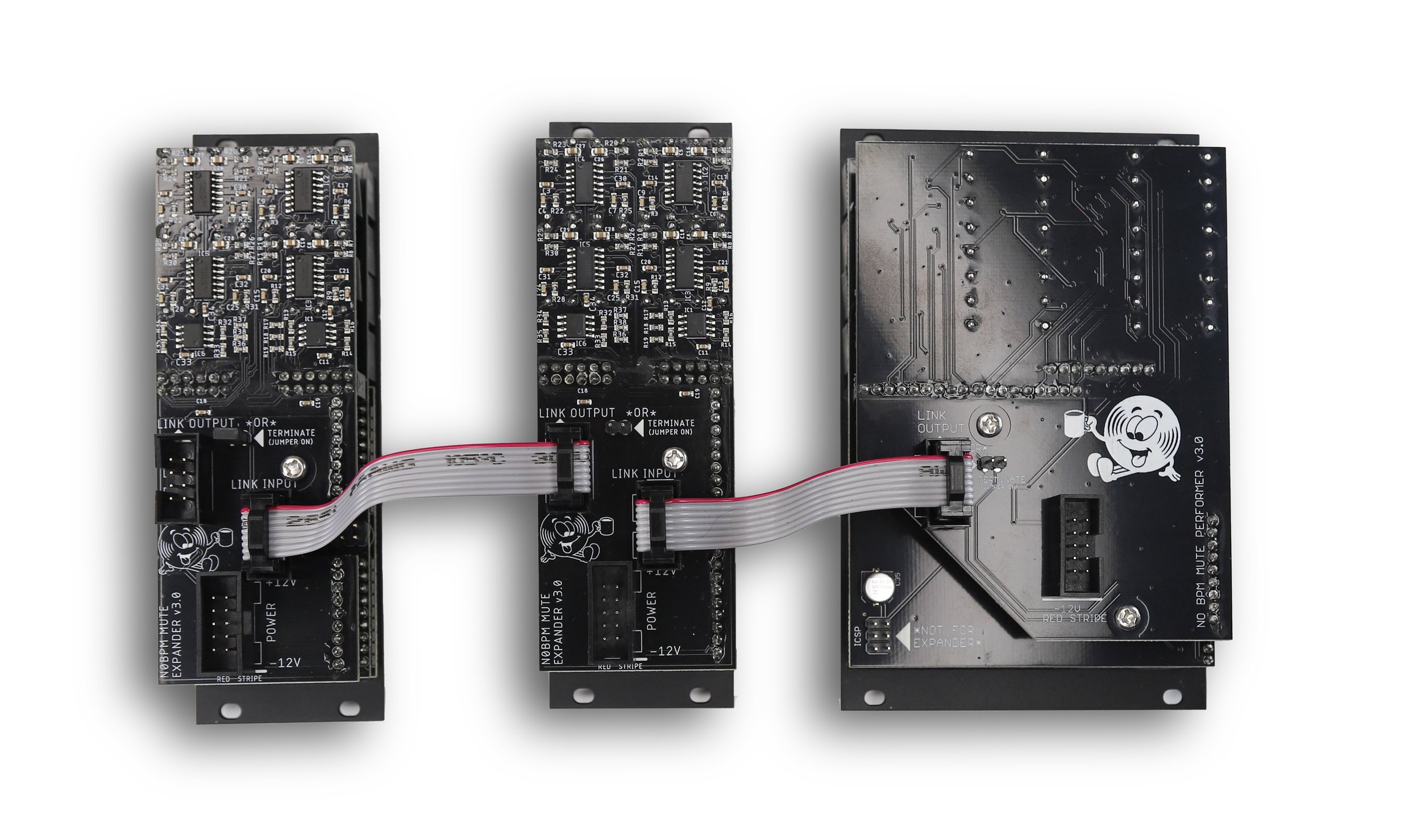

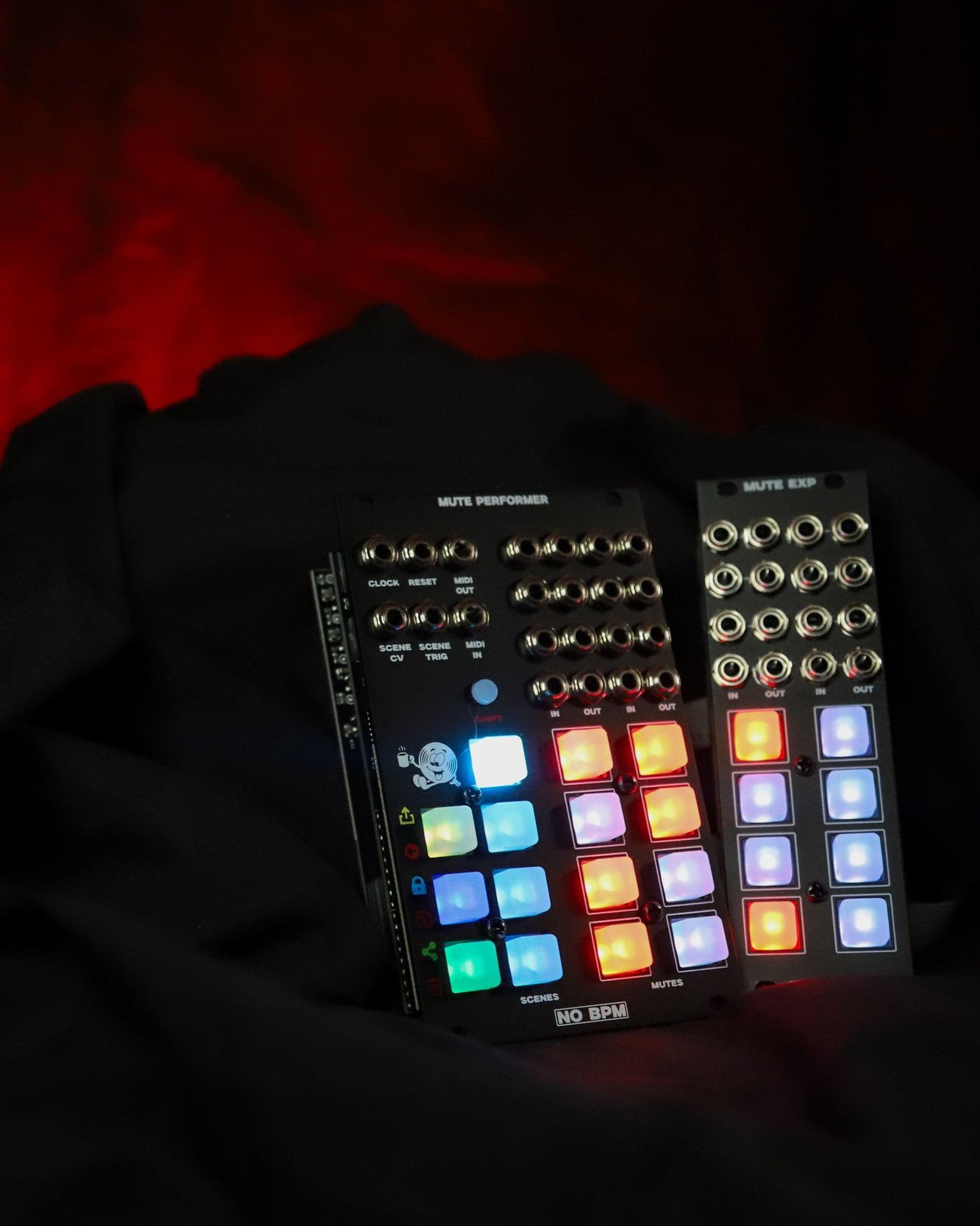

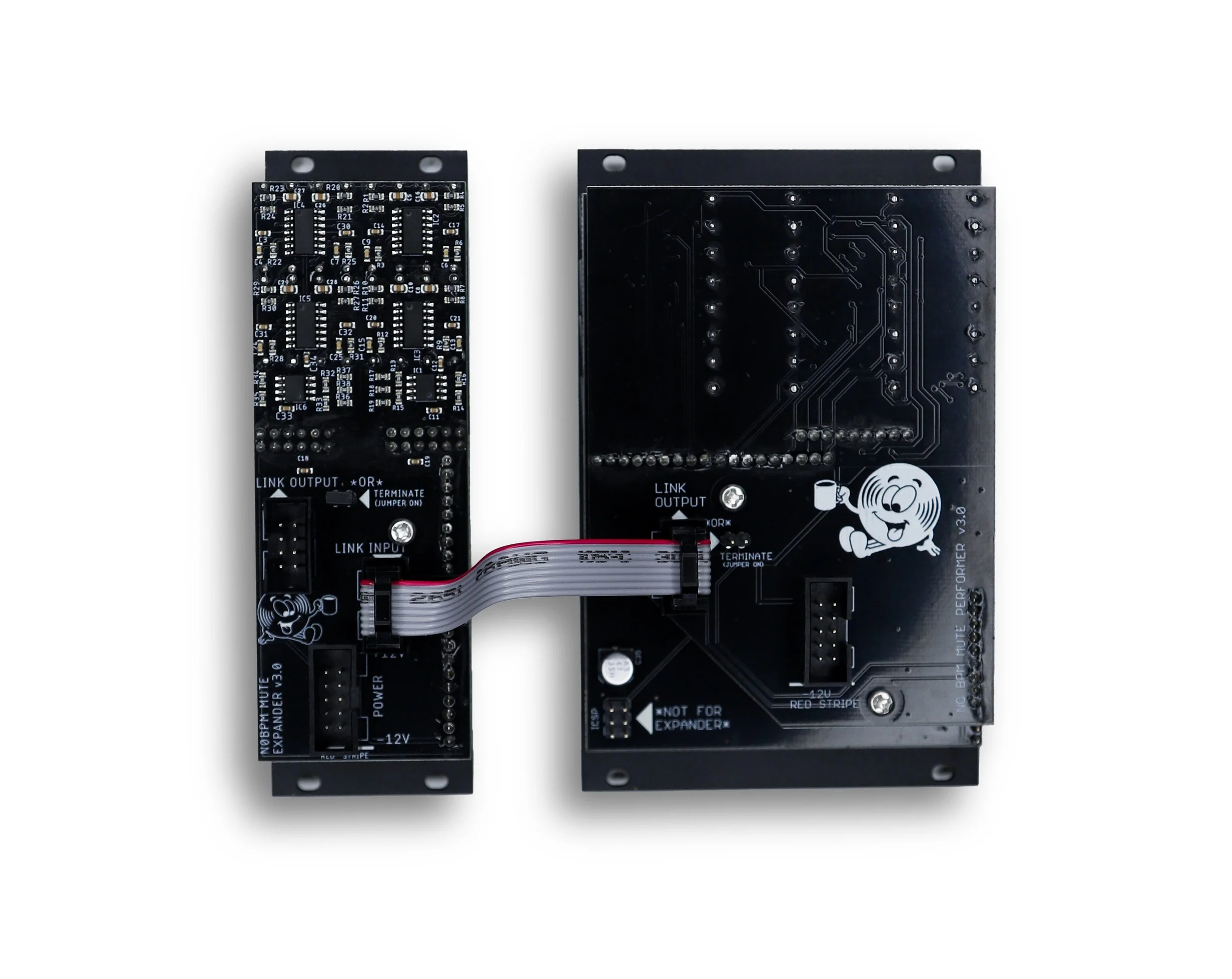

The Mute Performer alone has 8 channels, but can be expanded up to 72 channels with the Mute Expanders.
Technical Specifications
Width: 16HP
Depth: 36mm
Power Consumption: +12V @ 175mA, -12V @ 55mA, -5V Not Used.
Channels: 8 Analog/MIDI channels.
MIDI Input/Output: MIDI TRS Type A connection, typical 0-5VPP audio signals, safe for connection to -10V through +10V input.
Clock Input, Scene Trig and Scene Reset: Typical 0-5V, leading edge detected @ ~2.4V, safe for connection to -10V through +10V input.
Scene CV Input: 0-5V, 4 scenes @ 1.25V per step/scene, safe for connection to -10V through +10V input.
